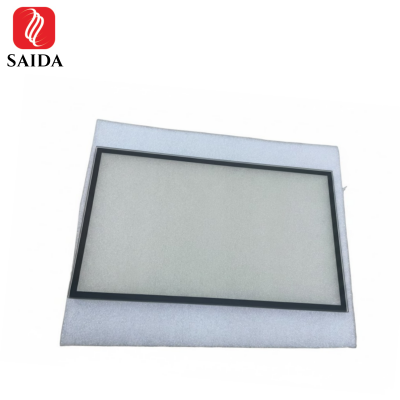

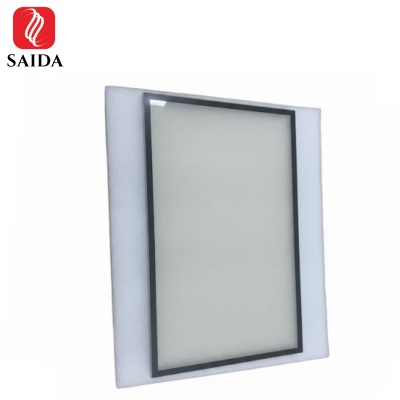

Technical Specification – Premium Ceramic Glass Panel
-
Material: High-performance glass-ceramic (Ceramic Glass)
-
Dimensions: 270 × 160 mm
-
Thickness: 4.0 mm
-
Flatness: ≤ 0.2 mm
-
Surface Finish: Precision matte / fine-textured surface (anti-glare effect)
-
Light Transmittance: Controlled translucency, non-transparent design
-
Edge Treatment: Precision CNC cut with fine ground and polished edges
-
Printing: High-temperature resistant ceramic silk screen printed black border
-
Heat Resistance: Continuous working temperature up to 700°C
-
Thermal Shock Resistance: ≥ 600°C temperature differential
-
Coefficient of Thermal Expansion (CTE): ≤ 2.0 × 10⁻⁶ /K
-
Mechanical Strength: High flexural strength with excellent impact resistance
-
Chemical Resistance: Resistant to acids, alkalis, oils, and household chemicals
-
Surface Hardness: ≥ 6 Mohs
-
Operating Environment: Suitable for long-term high-temperature and rapid heating/cooling cycles
-
Applications:
-
Induction & ceramic cooktops
-
Heating equipment panels
-
Premium household appliances
-
Industrial heating and control systems
-
-
What is safety glass?
Tempered or toughened glass is a type of safety glass processed by controlled thermal or chemical treatments to increase its strength compared with normal glass.
Tempering puts the outer surfaces into compression and the interior into tension.
