Cooktop Glass 4mm Black Ceramic Glass for Induction Cooker

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T

  • Product Detail

    FACTORY OVERVIEW

    PAYMENT & SHIPPING

    Product Tags

    oem 10 years experience

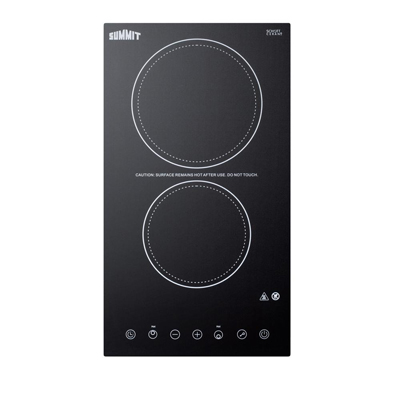

    黑丝微晶玻璃 (2) - 副本-400black ceramic glass  (3)-400

    Specification

    1, Density—approx. 2.56 g / cm3

    2, Modulus of Elasticity— approx. 93 x 103 Mpa

    3, Bending Strength— approx. 36 MPa

       The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45).

    4. Thermal Characteristics

        Coefficient of Mean Linear Expansion—α(20 – 700oC)     (0 ± 0.5) x 10-7 /K

    5. Resistance to Temperature Differences (RTD)

        Resistance of the panel to temperature differences between heated zone and cold panel edge       roomtemperature). No cracking due to thermal stress at Tes, max1<=700 degree C

    6. Thermal Shock Resistance

       Resistance of the panel to thermal shock when the hot panel (780 degree C) is quenched with cold water (20oC    temperature). No cracking due to thermal stress at Tes, max<=700 degree C

    7. Chemical Characteristics of Base Material

       Acid Resistance— DIN 12116: at least class S3

        Alkaline Resistance—based on ISO 695: at least class A2

    8. Screen printing: complies with RoHS standards, normal ink available

    9. Impact resistance: A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel 10  times. No scratching or cracking.

     features-applications-stepped glass for induction cooker

    Applications

    1.Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;

    2.Cover panels for heating radiators, drying stand, towel heaters;

    3.Cover panels for reflectors and high performance floodlights

    4.Cover panels in IR drying appliances

    5.Cover panels for beamers

    6.UV blocking shields

    7.Cover panels for kebab grill radiators, electric heating fish bowl

    8.Safety protection (bullet proof glass)

     black glass ceramic

    FACTORY OVERVIEW

    factory machine

    CUSTOMER VISITING & FEEDBACK

    Feedback

    All MATERIALS USED ARE COMPLIANT WITH ROHS III (EUROPEAN VERSION), ROHS II  (CHINA VERSION), REACH  (CURRENT VERSION)
