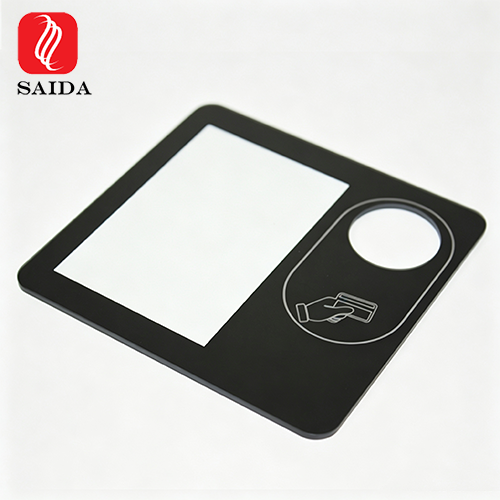

This access control tempered glass panel is specially customized for access card readers and access control terminals.
It adopts high-quality ultra-clear tempered glass as raw material, featuring high light transmission to clearly display screen content inside the device.
The surface is treated with professional anti-fingerprint, scratch-resistant and wear-resistant coating, effectively resisting daily scratches, oil stains and fingerprints.
With excellent waterproof, dustproof and anti-corrosion properties, it can adapt to indoor and outdoor complex environments for long-term use without aging.
All holes and windows are precisely cut by laser technology with high dimensional accuracy, perfectly matching access control equipment shells.
Silk-screen printing patterns, text and card-swiping icons on the glass are firm and colorfast, not easy to peel off.
Round edge polishing eliminates sharp edges for safer installation and usage.
Meanwhile, the panel supports sensitive capacitive touch induction, ensuring stable touch response of access control machines, and owns outstanding mechanical strength to resist impact and pressure.
Key Features
Material: High-quality tempered soda-lime or aluminosilicate glass
Thickness: 0.7 – 3.0 mm (customizable)
Surface Treatment: Silk screen printing / Anti-fingerprint / Anti-glare (optional)
Tolerance: ±0.2 mm, CNC processed edges
Color: Black (custom colors available)
Light Transmission: ≥ 90% in visible area
Thermal Strength: ≥ 650 °C tempering temperature
Function: NFC sensing, touch protection, display protection
Application: Payment terminals, vending machines, access control systems, smart kiosks
Advantages
Excellent scratch and impact resistance
Smooth edge polishing and optional burnished edges for safety
Stable NFC performance without signal interference
Compatible with capacitive touch screens
Customized shape, size, and printing supported
FACTORY OVERVIEW
CUSTOMER VISITING & FEEDBACK
All MATERIALS USED ARE COMPLIANT WITH ROHS III (EUROPEAN VERSION), ROHS II (CHINA VERSION), REACH (CURRENT VERSION
OUR FACTORY
OUR PRODUCTION LINE & WAREHOUSE
Lamianting protective film — Pearl cotton packing — Kraft paper packing
3 KIND OF WRAPPING CHOICE
Export plywood case pack — Export paper carton pack
