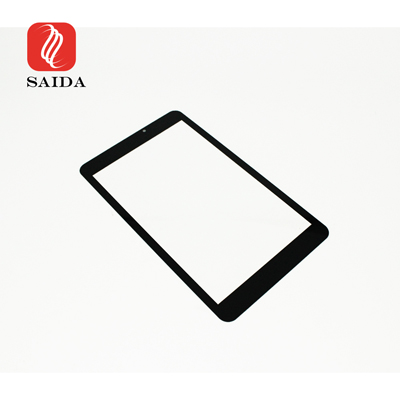

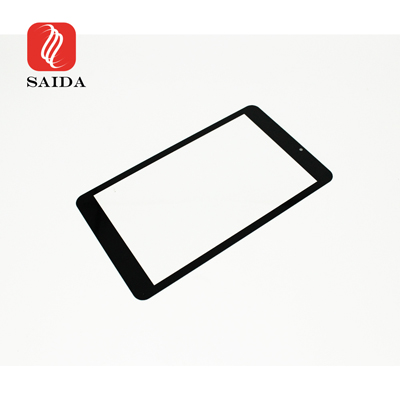

1mm Etched AG Glass Screen Protector for Rugged Tablet PC

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T

  • 5days quick turn for customized glass prototypes

    Product Detail

    FACTORY OVERVIEW

    PAYMENT & SHIPPING

    Product Tags

    oem 10 years experience



    414 (102)-400 414 (103)-400

    PRODUCT INTRODUCTION

    – Etched Anti Glare Display Cover Glass for Ebook

    – Super scratch resistant & waterproof

    – Custom design with quality assurance

    – Perfect flatness and smoothness

    – Timely delivery date assurance

    – One to one consultation and professional guidance

    – Customization services for shape, size, finish & design are welcomed

    – Anti-glare/Anti-reflective/Anti-fingerprint/Anti-microbial are available here

    Product Type
    10.1inch 1.1mm Etched Anti-Glare Touch Screen Toughened Glass for Rugged Tablet PC
    Raw Material Crystal White/Soda Lime/Low Iron Glass
    Size Size can be customized
    Thickness 0.33-12mm
    Tempering Thermal Tempering/Chemical Tempering
    Edgework
    Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available)
    Hole Round/Square (Irregular hole are available)
    Color
    Black/White/Silver (up to 7 layers of colors)
    Printing Method
    Normal Silkscreen/High Temperature Silkscreen
    Coating
    Anti-Glaring
    Anti-Reflective
    Anti-Fingerprint
    Anti-Scratches
    Production Process
    Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack
    Features Anti-scratches
    Waterproof
    Anti-fingerprint
    Anti-fire
    High-pressure scratch resistant
    Anti-bacterial
    Keywords
    Tempered Cover Glass for Display
    Easy Clean-up Glass Panel
    Intelligent Waterproof Tempered Glass Panel

    What is Silk-sreened Glass?

    Silk-sreened glass, also called silk printing or screened printing glass, is custom-made by transferring a silk-screen image to the glass and then processing it through a horizontal tempering furnace. Each individual lite is screen-printed with the desired pattern and ceramic enamel frit color. The ceramic frit can be silk-screened onto the glass substrate in one of three standard patterns–dots, lines, holes–or in a full-coverage application. In addition, custom patterns can be easily duplicated on the glass. Depending on the pattern and the color, the glass lite can be made transparent, translucent or opaque.

    Chemically strengthened glass is a type of glass that has increased strength as a result of a post-production chemical process. When broken, it still shatters in long pointed splinters similar to float glass. For this reason, it is not considered a safety glass and must be laminated if a safety glass is required. However, chemically strengthened glass is typically six to eight times the strength of float glass.
    The glass is chemically strengthened by a surface finishing process. Glass is submersed in a bath containing a potassium salt (typically potassium nitrate) at 300 °C (572 °F). This causes sodium ions in the glass surface to be replaced by potassium ions from the bath solution.

    These potassium ions are larger than the sodium ions and therefore wedge into the gaps left by the smaller sodium ions when they migrate to the potassium nitrate solution. This replacement of ions causes the surface of the glass to be in a state of compression and the core in compensating tension. The surface compression of chemically strengthened glass may reach up to 690 MPa.

    Edge & Angle Work

    Edge & Angle  Work

    Production Process

    Production Process

    What is safety glass?

    Tempered or toughened glass is a type of safety glass processed by controlled thermal or chemical treatments to increase

    its strength compared with normal glass.

    Tempering puts the outer surfaces into compression and the interior into tension.

    broken look

    Advantages of tempered glass

    1.Security: When the glass is external damage, Debris will become very small obtuse angle grains and difficult to cause harm to humans.

    2.High strength: the impact strength tempered glass of the same thickness of ordinary glass 3 to 5 times more than the ordinary glass ,bending strength 3-5 times.

    3.Thermal stability: Tempered glass has good thermal stability, can withstand the temperature is more than 3 times that of ordinary glass, can withstand 200 °C temperature changes.
