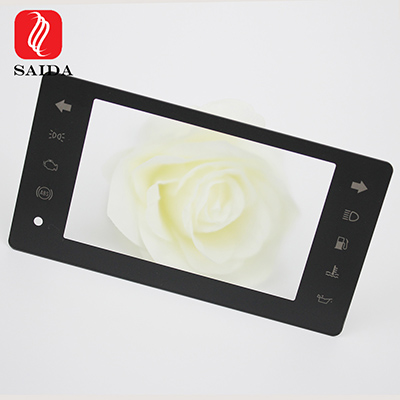

- Primary Definition: A protective cover glass designed specifically for automotive instrument clusters (tachometers/dashboards).
- Visual Structure: Features a clear central optical window for the display screen and a matte black border with silk-screened icons (e.g., turn arrows, temperature, A/C, headlights, fuel, and engine indicators) that form the user interface.
- Key Material & Coatings: Typically made of chemically strengthened glass (aluminosilicate) for high durability and scratch resistance. The surface is treated with Anti-Glare (AG) and Anti-Fingerprint (AF) coatings to ensure clear visibility under sunlight and to prevent smudges.
- Functionality: Serves as a robust protective barrier against dust, moisture, and impact for the sensitive LCD/TFT display beneath. The printed icons can also act as capacitive touch buttons or simply as an aesthetic design element for the dashboard.
- Application: Precisely cut and shaped for a seamless fit in modern vehicle instrument panels.
PRODUCT INTRODUCTION
| Mateial | Coring Gorilla Glass | Thickness | 1.1mm |
| Size | 125*79*1.1mm | Tolerance | ` +/- 0.1mm |
| CS | ≥750Mpa | DOL | ≥45um |
| Surface Moh’s hardneess | 5.5H | Transmittance | ≥90% |
| Printing Color | 2 colors | IK Degree | IK07 |
Advantages
Excellent scratch and impact resistance
Smooth edge polishing and optional burnished edges for safety
Stable NFC performance without signal interference
Compatible with capacitive touch screens
Customized shape, size, and printing supported
